Processing Capacity of Medium Crushing: 115-2000 (t/h)
Processing Capacity of Fine Crushing: 45-2176 (t/h)

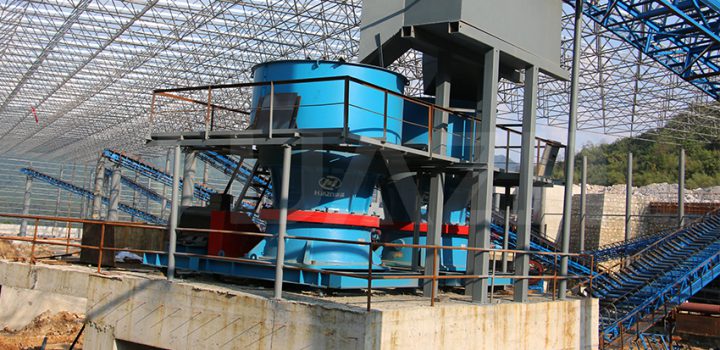

Application Fields: mining, metallurgy, construction, chemistry and silicate, concrete foundation or steel structure base, fixed and mobile site.
Applied Materials: it is applied for medium and fine crushing of various minerals such as rock, ore, slag, refractory material, etc.

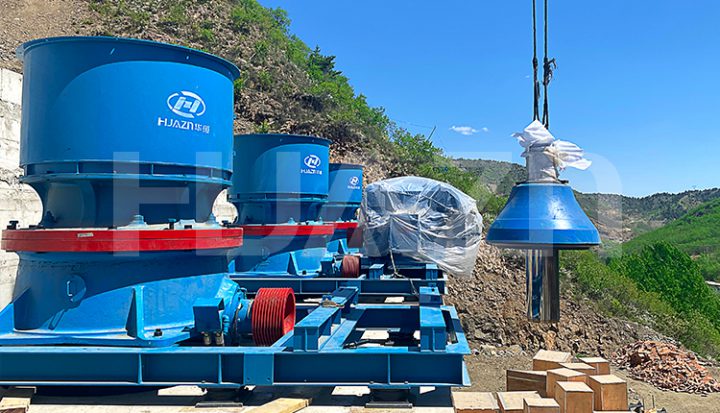

GPY series product is a high-efficient hydraulic cone crusher with single cylinder, optimally designed on the basis of domestic and foreign advanced technology. It adopts the technologies on crushing chamber optimization and combination of laminating and high-efficiency. Therefore, it has the features such as smart weight, large production capacity, good product shape, and low cost of wearing parts.
1.Special crushing cavity, reasonable eccentricity, optimal swing frequency and higher throughput, higher crushing ratio and better partical shape.
2.Firm structure and advanced overload protective system can make sure of long-time running and lower failure rate in hardest rock crushing process.
3.Positive pressure dust control system ensures a perpetually clean lubrication system and avoided dust pollution and extra lubrication and manual maintenance.
4.High degree of automation and easy to operate even for common operators.
5.Most parts can be dismounted from the top or lateral side which improves the effect of construction and meanwhile lowers the labor intensity.
6.Special crushing walls and rolling mortar wall design increases the utilization rate of wearing parts and decreases the spending on spare parts.
When the cone crusher works without material, eccentric bushing assembly “cling to” the spindle unit revolve with the rack wheel. When the material enter into the crushing chamber, spindle assembly (spindle, inner cone) rotate slowly inside the eccentric copper bushing under the resistance of material. The inner cone is oscillating inside the crushing chamber, which can extruding and crushing the material. When some unbroken materials like metal block falling into the crusher, the movable cone rise up by the lower piston, which plays the role of adjusting discharge outlet, iron passing protection and eliminate ore blocking.
| Medium Crushing | ||||||||
| Model | Eccentricity | Max.Motor Power（kw） | CSS（mm）/Capacity（t/h） | |||||
| 25mm | 30mm | 35mm | 40mm | 45mm | 50mm | |||
| GPY100S | 20 | 90 | 115-125 | 140-150 | 155-175 | 165-195 | 180-210 | |
| 25 | 180-190 | 195-215 | 205-225 | |||||
| GPY200S | 25 | 160 | 165-215 | 185-235 | 205-255 | 225-275 | ||
| 32 | 225-275 | 265-315 | 275-345 | |||||
| GPY300S | 32 | 250 | 320-350 | 350-390 | 370-410 | 390-430 | ||
| 40 | 400-450 | 440-490 | 470-520 | |||||
| GPY400S | 36 | 280 | 400-450 | 440-490 | 480-520 | 500-540 | 550-600 | |
| 42 | 520-570 | 550-630 | 620-670 | 650-700 | ||||
| Fine Crushing | |||||||||||||||
| Model | Eccentricity | Max.Motor Power（kw） | CSS（mm）/Capacity（t/h） | ||||||||||||
| 8mm | 10mm | 15mm | 20mm | 25mm | 30mm | 35mm | 40mm | ||||||||
| GPY100 | 20 | 90 | 45-50 | 50-55 | 65-75 | 90-100 | |||||||||
| 25 | 50-60 | 70-85 | 100-115 | ||||||||||||
| GPY200 | 25 | 160 | 85-105 | 105-125 | 125-150 | 155-175 | 180-205 | ||||||||
| 32 | 135-155 | 165-185 | 185-215 | ||||||||||||
| GPY300 | 32 | 250 | 100-120 | 110-140 | 155-185 | 185-215 | 220-250 | 255-285 | 290-320 | ||||||
| 40 | 140-160 | 195-225 | 235-265 | 280-310 | 315-345 | ||||||||||
| GPY400 | 36 | 280 | 150-180 | 200-240 | 260-285 | 290-320 | 330-365 | 370-400 | 410-440 | ||||||
| 42 | 260-290 | 320-350 | 355-385 | 390-420 | 430-460 | 470-500 | |||||||||
| GPY500S、GPY650S、GPY800S | |||||||||||||||
| Model | Max.Motor Power(kw) | Cavity |
Max. Feed Size (mm) |
CSS（mm）/Capacity（t/h） | |||||||||||
| 41mm | 44mm | 48mm | 51mm | 54mm | 60mm | 64mm | 70mm | 76mm | 83mm | ||||||
| GPY500S | 315 | EC | 560 | 600-680 | 670-730 | 750-860 | 800-850 | 870-930 | 950-1000 | 1030-1090 | 1000-1050 | 920-983 | 604 | ||
| GPY650S | 450 | EC | 560 | 730-790 | 820-880 | 760-830 | 950-1000 | 1030-1100 | 1180-1250 | 1380-1450 | 1450-1500 | ||||
| GPY800S | 630 | EC | 670 | 1050-1200 | 1250-1310 | 1225-1300 | 1450-1530 | 1550-1650 | 1675-1750 | 1830-1900 | 1925-2000 | ||||
| GPY500、GPY800、GPY1000 | ||||||||||||||||
| Model | Max.Motor Power (kw) | Cavity |
Max/Feed Size (mm) |
CSS（mm）/Capacity（t/h） | ||||||||||||
| 10mm | 13mm | 16mm | 19mm | 22mm | 25mm | 32mm | 38mm | 44mm | 51mm | 57mm | 64mm | 70mm | ||||
| GPY500 | 315 | EC | 275 | 172 | 290-333 | 390-431 | 420-460 | 500-542 | 560-600 | 610-657 | 450-511 | |||||
| C | 215 | 165-185 | 320-362 | 420-475 | 465-505 | 540-580 | 580-638 | 450-507 | 310-353 | |||||||
| MC | 175 | 210-248 | 350-421 | 410-450 | 440-480 | 500-550 | 430-494 | 300-360 | ||||||||
| M | 135 | 250-290 | 390-435 | 425-465 | 455-495 | 455-497 | 340-398 | |||||||||
| MF | 115 | 188 | 320-364 | 350-391 | 380-418 | 415-445 | 400-446 | 314-358 | ||||||||
| F | 85 | 260-300 | 280-323 | 310-347 | 330-371 | 355-395 | 340-396 | 318 | ||||||||
| EF | 65 | 250-288 | 270-311 | 250-293 | 250-290 | |||||||||||
| GPY650 | 450 | EC | 290 | 200-220 | 350-400 | 450-503 | 500-551 | 580-630 | 660-710 | 700-753 | 650-700 | |||||
| MC | 180 | 300-350 | 440-490 | 460-510 | 520-565 | 570-617 | 540-590 | 580-630 | ||||||||
| MF | 115 | 190-215 | 420-470 | 430-488 | 470-515 | 520-571 | 530-580 | 420-470 | ||||||||
| F | 85 | 330-384 | 390-447 | 400-451 | 410-463 | 450-502 | 500-552 | |||||||||
| GPY800 | 600 | EEC | 350 | 460-520 | 740-800 | 840-900 | 950-1010 | 1060-1120 | 1170-1230 | 1290-1350 | 1400-1450 | 1220-1280 | ||||
| EC | 300 | 520-584 | 780-844 | 900-963 | 1010-1065 | 1110-1167 | 1230-1286 | 1320-1388 | 1450-1506 | 1270-1326 | ||||||
| C | 240 | 400 | 590-631 | 830-888 | 950-1013 | 1060-1120 | 1170-1227 | 1290-1352 | 1400-1460 | 1400-1456 | 1220-1281 | |||||
| MC | 195 | 380-435 | 660-718 | 770-832 | 890-950 | 990-1050 | 1090-1150 | 1210-1267 | 1310-1368 | 1310-1365 | 1140-1201 | |||||
| M | 155 | 500-563 | 720-780 | 780-836 | 890-948 | 990-1050 | 1090-1150 | 1210-1266 | 1310-1367 | 1180-1243 | 1030-1093 | |||||
| MF | 130 | 374-420 | 650-711 | 700-760 | 750-809 | 860-923 | 880-937 | 720-784 | 697 | |||||||
| F | 90 | 352-390 | 590-650 | 640-700 | 690-747 | 740-795 | 850-907 | 790-852 | 650-713 | |||||||
| EF | 80 | 340-400 | 450-511 | 490-553 | 530-593 | 580-635 | 620-675 | 710-770 | 670-728 | 600-664 | ||||||
| GPY1000 | 750 | EC | 370 | 390-454 | 1235-1304 | 1375-1441 | 1515-1580 | 1675-1740 | 1815-1878 | 1975-2038 | 2111-2176 | |||||
| C | 330 | 392 | 720-770 | 1335-1400 | 1485-1547 | 1630-1695 | 1803-1868 | 1955-2015 | 2123-2188 | 2075-2137 | ||||||
| MC | 300 | 445-508 | 785-847 | 1165-1227 | 1335-1400 | 1485-1547 | 1630-1695 | 1803-1868 | 1955-2015 | 1935-2000 | 1665-1734 | |||||
| M | 230 | 262-306 | 600-665 | 885-946 | 1045-1101 | 1105-1256 | 1315-1390 | 1445-1521 | 1611-1676 | 1745-1810 | 1720-1795 | 1495-1560 | ||||
| MF | 160 | 200 | 445-509 | 620-685 | 855-916 | 910-975 | 1045-1112 | 1165-1230 | 1280-1347 | 1420-1485 | 1535-1602 | 1315-1391 | 1100-1165 | |||
| F | 120 | 243-284 | 600-665 | 765-833 | 825-890 | 885-947 | 1015-1080 | 1100-1160 | 985-1046 | 755-822 | 555-620 | |||||
| EFX | 100 | 355-418 | 595-661 | 645-710 | 695-758 | 745-807 | 870-921 | 925-990 | 825-891 | 635-700 | 465-528 | |||||
| EF | 85 | 180-240 | 515-580 | 565-626 | 605-673 | 655-715 | 700-765 | 820-873 | 900-965 | 995-1058 | 1100-1165 | 945-1005 | 795-857 | 600-664 | ||
| EEF | 75 | 405-470 | 495-560 | 535-603 | 585-648 | 625-692 | 675-737 | 775-841 | 785-850 | 965-756 | 510-575 | 412 | ||||
