Max. Feed Size: 210-770 (mm)
Feed Opening:
400×250、600×400、750×500、1300×300、1200×400(mm)

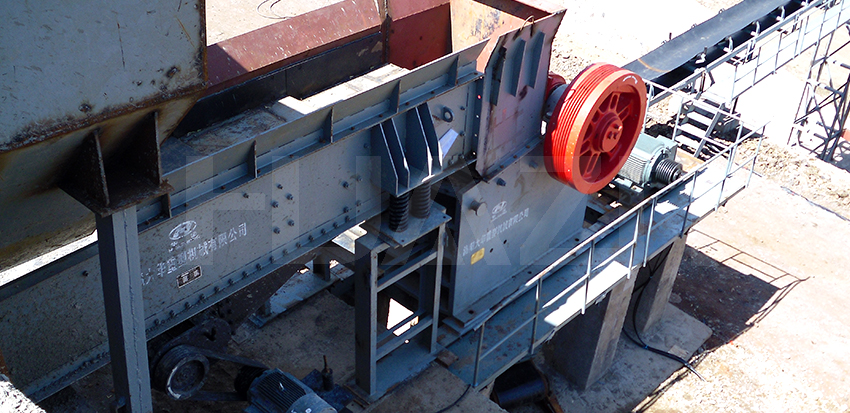

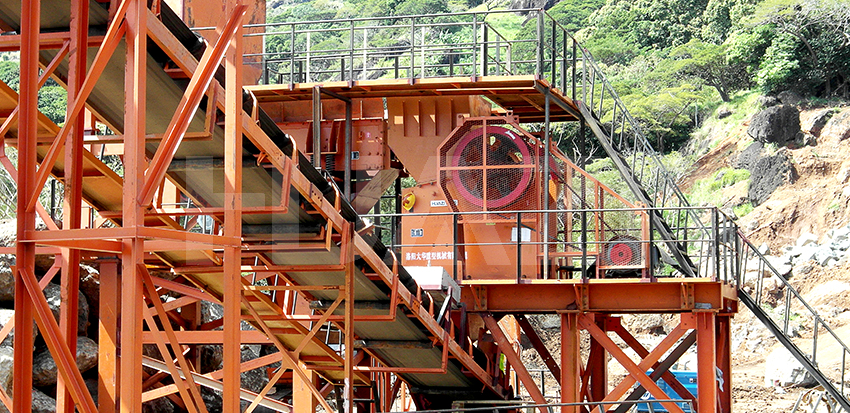

Application Fields: mining, chemical, high way, rail road, construction, water conservancy, etc.
Applied Material: ore with compression strength less than 300Mpa, rock, etc.
DHKS Series Jaw Crushers are belong to compound pendulum jaw crushers, applied on the crushing of ores or rocks with compressive strength of less than 300MPa and are the preferred devices for primary crushing. This series are widely used on mining, construction, high way, railway, water conservancy, chemical engineering and other areas. The production capacity is 7-200 t/h.
1.The machine has big crushing ratio, stable model design, higher bearing capacity, and the reliable quality.
2.Even product granularity: using advanced crushing principle, full grain type, less flake gravel, uniform grain type.
3.Simple structure, large production capacity: For ensuring the production capability, advanced structural design adopted. More simple machine operation, short maintenance time.
Electrical motor drives the belt wheel to make the swing jaw move following the specific track by eccentric shaft. After the materials enter into the crushing chamber, they are crushed between the two jaw plates by impacting, bending, and striking, and then discharged from the discharge opening.
| Model | Feed Opening Size(mm) | Max. Feed Size（mm） | Discharge Opening Size(mm) | Capacity(t/h） | Power(kw) |
| DHKS1610 | 400×250 | 210 | 20-80 | 7—23 | 15 |
| DHKS2416 | 600×400 | 340 | 40-100 | 25—64 | 30 |
| DHKS3020 | 750×480 | 400 | 50-120 | 60—120 | 55 |
| DHKS3624 | 920×600 | 510 | 65-130 | 88-170 | 75 |
| DHKS4230 | 1060×750 | 640 | 65-200 | 90-310 | 110 |
| DHKS4836 | 1220×910 | 770 | 90-250 | 200-500 | 160 |
| DHKS4816 | 1220×400 | 320 | 25-90 | 18-80 | 55 |
| DHKS5112 | 1300×300 | 240 | 20-90 | 30-110 | 75 |
| DHKS6016 | 1500×400 | 320 | 25-90 | 60—200 | 90 |
