PEY Series Hydraulic Jaw Crusher

Processing Capacity: 15-280m³/h
Application Field: it is mainly used in hundreds of steel slag processing plats such as Baosteel, Shougang Group, Masteel, etc. and exported to many counties as Pakistan, Malaysia and so on.
Applied Material: coarse and medium crushing of steel slag.

Contact Us
Share
  • Overview
  • Product Features
  • Working Principle
  • Technical Parameters
  • Customer Cases
Overview

PEY Series Hydraulic Protection Jaw Crushers have function of overload protection. It means that when suddenly loaded by blocks that can not be broken, the machine can instantly auto-unload them by means of its hydraulic protection device, which therefore effectively avoids excessive impact and blocking problem. This type of crusher is often used in the crushing and processing for metallurgical slags.

Product Features

1.The crusher can be accordingly set with rated load to do selective crushing for materials containing different compressive strengths.
2.The crushers have quite reliable functions of impact protection and automatic discharging, which effectively resolve the blocking problems for continuous production.

Working Principle

The uncrushed materials enter into the crushing chamber from the upper feed opening, and then discharged from the lower discharge opening after striking and crushing. Electric motor drives the eccentric shaft to make the swing jaw up and down under the effect of toggle plate and spring.

Technical Parameters
Model Max. Feed Size(mm) Discharge Opening Size(mm) Capacity(m³/h) Max. Stroke of Oil Cylinder(mm) Power(kw)
PEY300×1300 250 30-90 15-70 150 75
PEY400×600 340 40-100 16-40 160 30
PEY400×750 340 20-80 20-50 160 45
PEY500×750 380 50-100 40-68 200 55
PEY600×900 500 75-150 40-80 200 75
PEY750×1060 630 80-230 80-160 320 110
PEY900×1200 750 100-250 140-280 320 132
Customer Cases

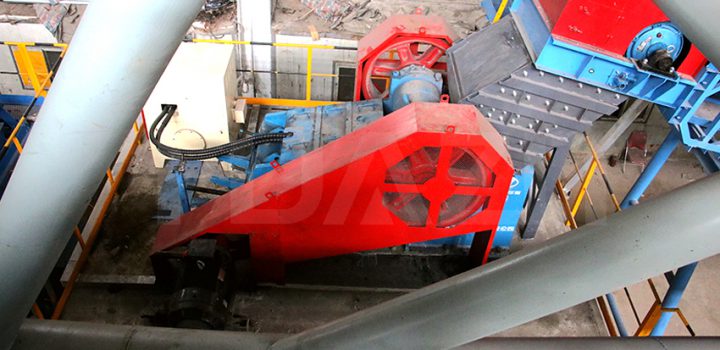

steel slag jaw crusher

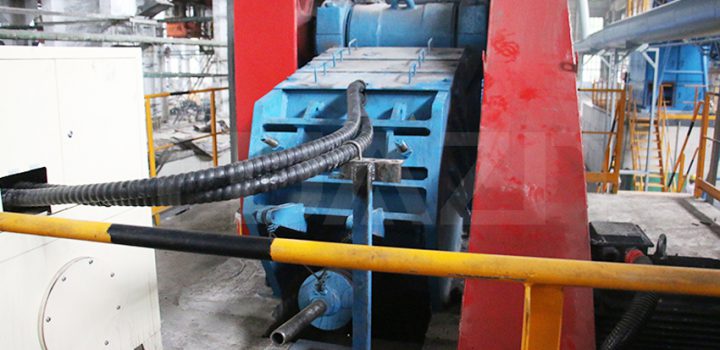

Hydraulic jaw crusher
Related Products
PFQ Series Vortex Strong Impact Crusher
DHKS Small Jaw Crusher
JC Series Jaw Crusher
