HPY Multi-cylinder Hydraulic Cone Crusher

Model: standard type (B), short head type (D
Max. Feed Size: (B) 110-326 (mm); (D) 60-136(mm)
Application Fields: mining, metallurgy, construction material.
Applied Material: it is applied for fine and medium crushing of medium hardness aggregates.

Contact Us
  • Overview
  • Product Features
  • Working Principle
  • Technical Parameters
  • Customer Cases
Overview

HPY Multi-cylinder Hydraulic Cone Crushers are kind of new cone crushers with the lowest consumption and greatest crushing power. Moreover, they also feature in high reliability, huge production capacity, high automation, easy operation and maintenance, good product shape and low cost for wearing parts.

Product Features

1.Equipped with two impact crushing cavities which can be adjusted.
2.The upper and lower frame of crusher can all be dismounted, transported and installed in ease.
3.The two sides of it are mounted with unique openings which can be used to change the hammer and impact rack.
4.The machine self is cube-shaped and the discharge size of materials can be pre-seted.
5.Easy operation and maintenance and high efficiency.

Working Principle

When the HPY series multi cylinder hydraulic cone crusher works, electric motor drive the gear shaft to rotate, drive shaft and cone body make the eccentric shaft periodically oscillating and rotating around the center axis. After the material enter into the crushing chamber, they are continuously striking, grinding and squeezing under the interaction of eccentric shaft and concave until the material reach the required granularity, and then discharged from the lower outlet.

Technical Parameters
Model Max.Motor Power(kw) CSS(mm)/Capacity(t/h)
6mm 8mm 10mm 13mm 16mm 19mm 22mm 25mm 32mm 38mm 45mm 51mm
HPY200 160 75-95 70-90 85-115 115-145 135-175 145-185 155-195 165-215 185-230 205-245
HPY300 220 60-75 100-130 110-140 145-180 170-215 190-230 220-260- 225-275 245-320 300-375 345-430
HPY400 315 105-140 135-170 180-225 215-275 250-320 275-345 285-370 315-425 350-480 400-540 455-615
HPY500 400 135-170 170-220 225-290 270-345 310-400 340-425 360-450 400-530 425-585 500-670 560-770
HPY600 450 210-305 280-385 330-450 365-485 415-535 435-570 440-635 515-705 575-790
HPY700 500 220-325 300-405 350-485 400-520 465-590 490-620 550-690 605-755 685-860 780-975
HPY800 630 240-335 315-420 375-500 420-540 500-650 550-750 650-850 585-920 670-990 765-1100
HPY1000 750 540-610 600-750 660-820 730-920 790-1050 850-1230 1100-1480 1350-1780 1600-2120 1850-2500
HPY1250 1000 597-710 775-925 845-1025 910-1135 1025-1385 1150-1520 1460-1885 1725-2195 2010-2615 2295-3035
Customer Cases

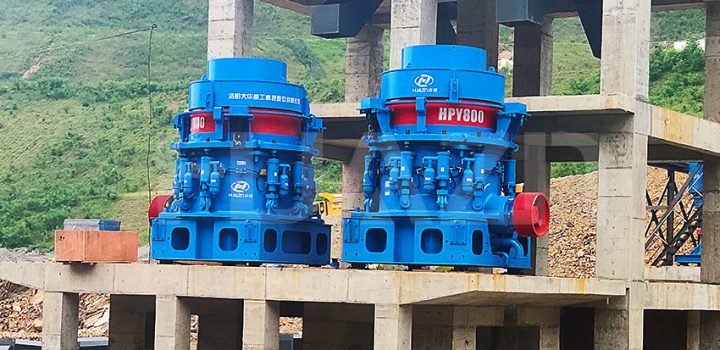

hydraulic cone crusher

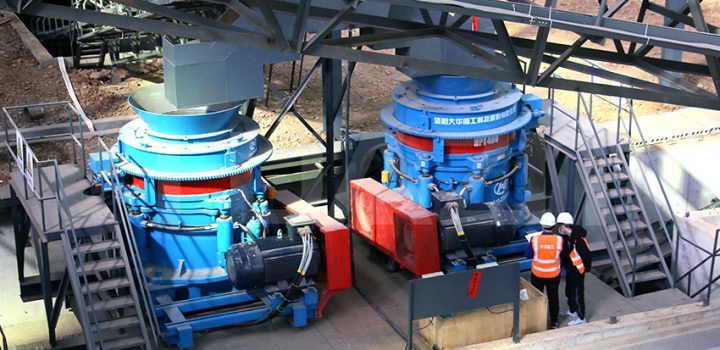

HPY cone crusher
