Max. Feed Size: 500-1000 (mm)
Feed Opening:
910×630,1070×760,1220×910,1370×1070,1520×1220 (mm)

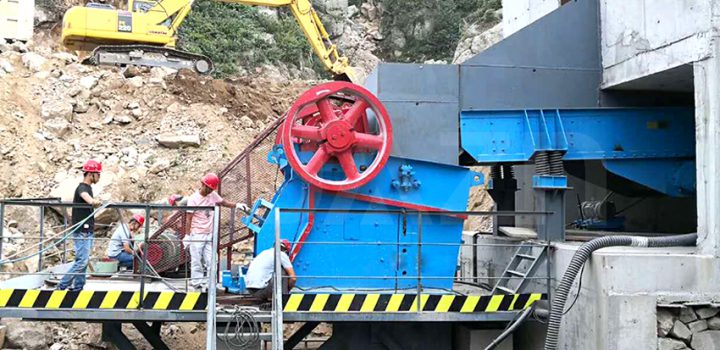

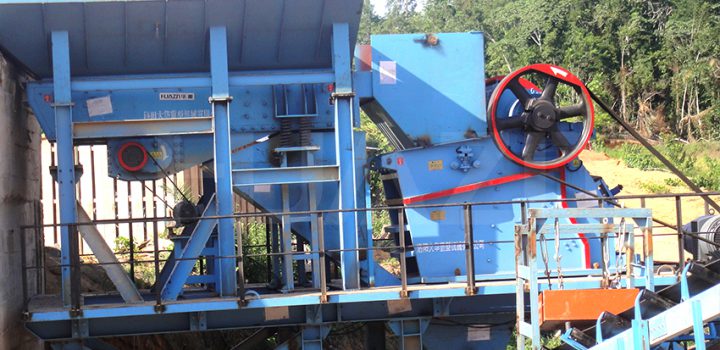

Application Fields: highway, railroad, and water conservancy, etc.
Applied Material: lime stone, medium-hardness iron ore, feldspar, etc.
The product has the characteristics of high capacity, jaw plate wear resistance, high degree of humanized operation, good stability, simple structure and appearance which is the suitable choice for crushing processing with compressive strength less than 300 mpa.
1.“V” type of crushing chamber, effective opening size is equal to the nominal opening size (common jaw crusher adopts the traditional asymmetric crushing chamber structure, and effective opening size is smaller than nominal opening size) and the throughput capacity will be increased by 15-20% compared with the normal crushing chamber.
2.The discharge opening applies the hydraulic adjusting unit, the optimized chamber and motion parameter make the product have greater through capacity for same clearance.
3. Factory price, fast delivery, easy maintenance, complete after-sale service. From machine selection to site operation, the engineers responsible for the whole process.
The electric motor drives belt wheel to make the swing jaw up and down through eccentric shaft. When the swing jaw goes up, the angle between toggle plate and swing jaw gets bigger, and the materials can be crushed. When the swing jaw goes down, the angle between toggle plate and swing jaw becomes smaller, the swing jaw moves away from the fixed jaw plate, and then the crushed materials will be discharged from the lower outlet of the crushing chamber.
| Model | Max. Feed Size（mm） | Feed Opening Size(mm) | CSS（mm）/Capacity（t/h） | Power（kw） | ||||||||
| 50 | 75 | 100 | 125 | 150 | 180 | 200 | 220 | 250 | ||||
| ASJ-E36-25 | 500 | 910×630 | 125 | 160 | 195 | 225 | 255 | 290 | 90 | |||
| ASJ-E42-30 | 610 | 1070×760 | 215 | 260 | 305 | 345 | 390 | 420 | 110 | |||
| ASJ-E48-36 | 730 | 1220×910 | 280 | 330 | 385 | 440 | 495 | 535 | 570 | 160 | ||
| ASJ-E54-42 | 860 | 1370×1070 | 395 | 470 | 535 | 615 | 670 | 720 | 185 | |||
| ASJ-E60-48 | 1000 | 1520×1220 | 530 | 620 | 720 | 785 | 850 | 950 | 220 | |||
