Wheel Diameter: 2800-3800(mm)
Wheel Width: 1.07-1.235（mm）
Processing Capacity: 20-220（t/h）
Application Fields: metallurgy, construction material, hydropower
Applied Material: fine and coarse grain

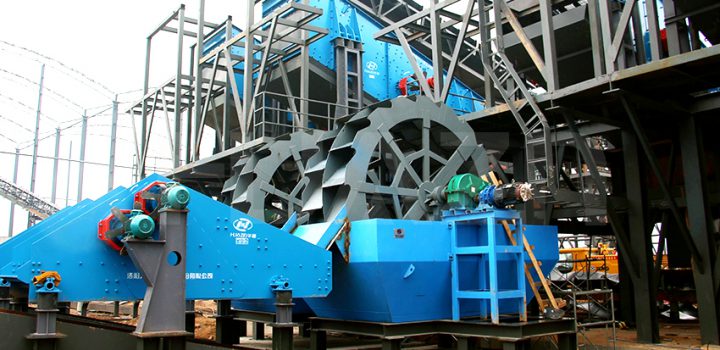

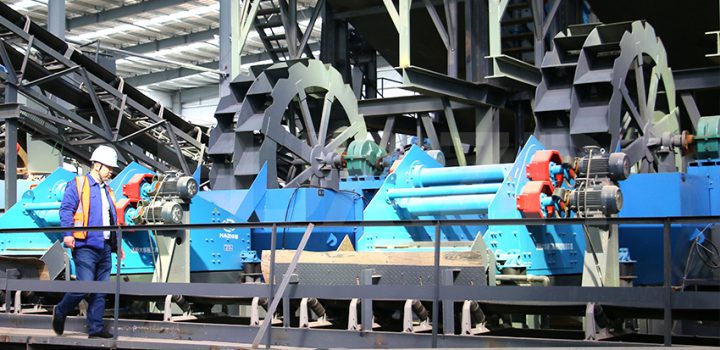

DXS series bucket-wheel sand washing machine is the washing equipment developed according to domestic processing situation in sand industrial by our company and take advantage of foreign advanced technology. This machine can be sorted into two types, they are light sand washer and heavy sand washer. The former type is generally for materials in fine granularity and the latter one for those in coarse granularity.
1. High cleanness, large throughput, high efficiency, and less run-away of sand.
2. Simple structure for saving space.
3. Segregation design of bearing, water as well as sand greatly lessen the breakdown rate of bearing.
4. Optimal design of transmission part is beneficial for field installation.
5. Professionally designed stock guide helps to excavate and discharge materials.
6. Few venerable parts ensures a longer service life and few maintenance times.
7. High capacity with low energy consumption, and water conservation and pollution-free.
When the sand washer works, electromotor drives the impeller rotate slowly through V-belt, reducer and gear. The sand and stone materials are fed into wash trough through feeding chute which are driven by the impeller to overturn and grind with each other in order to remove the impurity covering on the sand surface, at the same time destroy its moisture layer. Fill certain amount of water. The impurity and foreign matters with small proportion are discharged from the wash trough, while the clean sand and stone are taken away by the impeller, and finally are poured into discharge chute to complete washing process.
| Type | Wheel Diameter（mm） | Wheel Width（mm） | Wheel Speed（r/min） | Capacity（t/h） | Power（kw） | Dimension（mm） |
| DXS2.8 | 2800 | 880 | 1.235 | 20-50 | 7.5 | 3875×2550×2910 |
| DXS3.2 | 3200 | 880 | 1.217 | 100-150 | 11 | 4547×3069×3400 |
| DXS3.6 | 3600 | 1200 | 1.09 | 130-190 | 15 | 4982×4146×3800 |
| DXS3.8 | 3800 | 1600 | 1.07 | 150-220 | 22 | 4978×5440×3798 |
| DXS3.8/3 | 3800 | 2400 | 1.09 | 250-350 | 37 | 4978×5440×3798 |
