Working Principle
Hydraulic station is also called hydraulic pump station. The motor drives the oil pump to rotate. The pump absorbs oil from the tank and pumps oil, converting mechanical energy into pressure energy of hydraulic oil. The hydraulic oil is controlled by the hydraulic valve through the integrated block (or valve combination) to achieve direction, pressure, After the flow is adjusted, it is transmitted to the oil cylinder or oil motor of the hydraulic machine through the external pipeline, thereby controlling the change of the direction of the hydraulic machine, the size of the force, the start and stop of the equipment, and the speed of the speed, and promotes various hydraulic machines to do work.

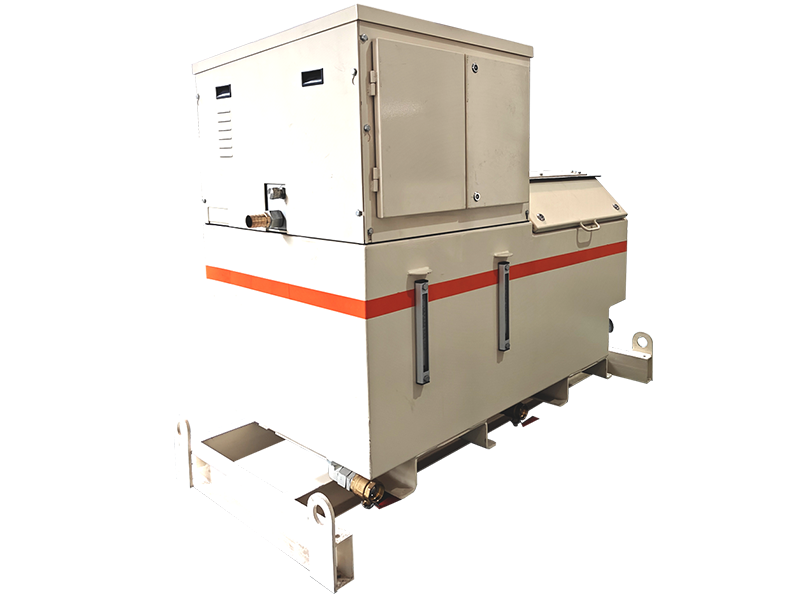

Structure of cone crusher hydraulic station
The cone crusher hydraulic station is mainly composed of two parts: the hydraulic system and the control system.
1.Hydraulic system
The hydraulic system is the core part of the cone crusher hydraulic station. It consists of a hydraulic pump, a hydraulic cylinder, a hydraulic motor, a hydraulic tank, etc. The hydraulic pump inputs mechanical energy into the hydraulic system, the hydraulic cylinder generates linear or rotational motion through the pressure of hydraulic oil, and the hydraulic motor converts hydraulic energy into mechanical energy. The hydraulic oil tank is used to store hydraulic oil and deliver the hydraulic oil to various parts of the hydraulic system through the oil pump.
2.Control system
The control system is used to control and adjust the hydraulic system to realize the work of the cone crusher hydraulic station. The control system mainly includes two parts: electronic control system and hydraulic control system. The electronic control system senses and controls the working status of the hydraulic system through electrical components and sensors, while the hydraulic control system controls the hydraulic system through hydraulic control components. The control system can accurately control and adjust the hydraulic system according to different work requirements.
The working process
1. Start the hydraulic pump and pump hydraulic oil into the hydraulic system to form a certain hydraulic pressure. Hydraulic oil is sucked into the hydraulic pump from the hydraulic oil tank, compressed and pushed to the hydraulic cylinder or hydraulic motor under the pressure of the pump body.
2. The hydraulic cylinder or hydraulic motor is affected by the pressure of hydraulic oil and produces linear or rotational motion. The linear motion of the hydraulic cylinder can be used to push, pull, and lift objects, and the rotational motion of the hydraulic motor can be used to drive the rotational motion of the equipment.
3. The control system accurately controls and regulates the hydraulic system. Through the control system, the working pressure, flow and direction of the hydraulic system can be adjusted to achieve flexible control of the working status of the cone crusher hydraulic station.
4. The hydraulic oil completes energy conversion in the hydraulic system and returns to the hydraulic tank again.
The working principle of the cone crusher hydraulic station is based on the principle of hydraulic transmission. Through the cooperation of hydraulic components such as hydraulic pumps, hydraulic cylinders, and hydraulic motors, the energy of the liquid is converted into mechanical energy to achieve specific work tasks. Cone crusher hydraulic stations are widely used in engineering fields, such as construction, mining, metallurgy and other industries. They are efficient, stable and reliable, providing important support and guarantee for engineering construction.
